EMI吸波材 Home >產品介紹-電磁波吸波材

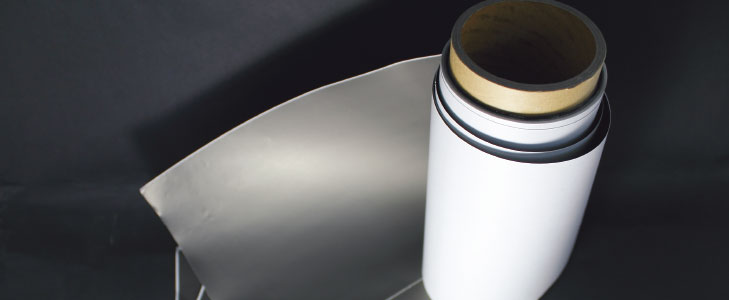

EMI吸波材

產品特色

概述/Outline:

  1. 近年來各式各樣的數位設備,如智慧型手機、手提式電腦這些高速信號傳輸的設備廣受電磁波雜訊干擾。這些雜訊的干擾導致信號品質下降同時也增加了故障的發生率。將電磁波干擾抑制片貼在干擾元件上,藉由傳導分散輻射干擾能有效地降低傳輸率降低、傳輸距離變短等問題。

應用/Application:

  1. » 手機設備SAR(生物體單位質量對電磁波能量比吸收率)
  2. » 數位相機
  3. » 各種設備如電視、電腦、DVD、筆記型電腦
  4. » 頻轉發器
  5. » 移動通訊設備如 PDA,PDP

MX-RN-100系列
1 高磁損電磁波吸波材,適合同時處理高低頻雜訊問題,可有效抑制基板的表面波、金屬空腔共振波和抑制反射波,以及一般電子系統EMI的消除
通用頻率: 1MHz~3GHz µ':100 厚度:0.05-0.5mm
MX-RN-130系列
1 適用於1MHz~3GHz之頻段,適合貼附於高速傳輸線或FPC上,可有效抑制雜訊
通用頻率:1MNz~3GHz µ':130 厚度:0.05-0.3mm
MX-RN-150系列
1 適用於1MHz~3GHz之頻段,適合貼附於IC或LSI,可有效吸收輻射電波
通用頻率: 1MHz~3GHz µ':150 厚度:0.05-0.3mm
MX-RN-180系列
1 適用於1MHz~3GHz之頻段,適合貼附於IC或LSI,可有效吸收輻射電波
通用頻率: 1MHz~3GHz µ':180 厚度:0.05-0.3mm
MX-RN-200系列
1 適用於1MHz~3GHz之頻段,適合貼附於IC或LSI,可有效吸收輻射電波
通用頻率: 1MHz~3GHz µ':200 厚度:0.05-0.3mm

產品規格

PHYSICAL PROPERTIES UNIT TEST VALUES
Appearance - Dark Gray
Specific Gravity g/cm3 3.6
Viscosity @ 25°C, 5 rpm cps 37,600
ELECTRICAL PROPERTIES UNIT TEST VALUES
Volume resistivity Ohm-cm >106
CURING REQUIREMENTS UNIT TEST VALUES
Curing conditions - 15~40°C, 50% relative humidity
Handling Time hour 1
Full Cure Time hour 24

General Information:

  1. 1. For safe handling information on this product, consult the Material Safety Data Sheet (MSDS).
  2. 2. The TDS information provide are base on tests performed under laboratory conditions.
  3. 3. The adhesive is supplied ready for use, in case of refrigerated storage, it must be ensured that glue is conditioned to room temperature before use.

Storage:

  1. Store product in the unopened container in a dry location. Optimal Storage: -40°C.
  2. Allow the RN-E0003 adhesive container to reach room temperature before use. After removing from the freezer, set the syringes to stand vertically, tip down, while thawing. Do not open the container before the contents reach ambient temperature. Any moisture that collects on the container should be removed prior to use.
  3. Material removed from containers may be contaminated. Do not return product to the original container.

其他吸波泡棉

Technical Data Sheet MX-RN-100

MX-RN-10010/10020

MX-RN-10010 0.01 0.1 1 -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 -0.0 Frequency(GHz) Reflection Loss (dB) MX-RN-10020

Technical Data Sheet MX-RN-130

MX-RN-13010/13020

0.01 0.1 1 Frequency(GHz) -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 -0.0 Reflection Loss (dB) MX-RN-13010 MX-RN-13020

Technical Data Sheet MX-RN-150

MX-RN-15010/15020

0.01 0.1 1 Frequency(GHz) -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 -0.0 Reflection Loss (dB) MX-RN-15010 MX-RN-15020

Technical Data Sheet MX-RN-180

MX-RN-18010/18020

0.01 0.1 1 Frequency(GHz) -3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 -0.0 Reflection Loss (dB) MX-RN-18010 MX-RN-18020

Technical Data Sheet MX-RN-200

MX-RN-20010/20020

-3.5 -3.0 -2.5 -2.0 -1.5 -1.0 -0.5 -0.0 Reflection Loss (dB) 0.01 0.1 1 Frequency(GHz) MX-RN-20010 MX-RN-20020

Technical Data Sheet MX-RN-100,130,150,180,200


Permeability (at 3MHz) 100,130,150,180,200
Temperature Range -25~+120
Suface Resistance (min) Ω 10 x 10⁷
Curie Temperature g/cm3 3.3
Specific gravity mm 0.03~0.5
Standard Thickness mm A4 (210*297)
Standard Size RoHS Compliant
Environment Other Halogen-Free
Remark High Permeability Thin Film
