微波&5G吸波膠片 Home > 產品介紹 - 電磁波吸波材

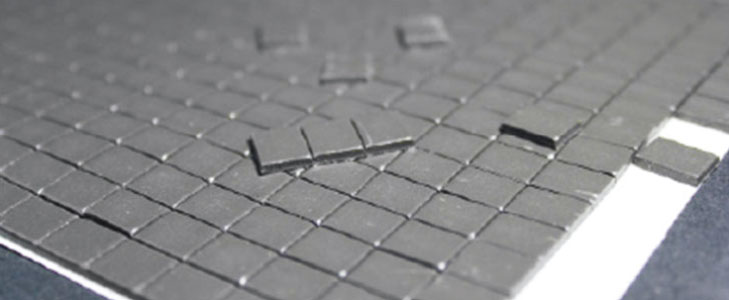

微波&5G吸波材

產品特色

概述/Outline:

  1. 近年來各式各樣的數位設備,如智慧型手機、手提式電腦這些高速信號傳輸的設備廣受電磁波雜訊干擾。這些雜訊的干擾導致信號品質下降同時也增加了故障的發生率。將電磁波干擾抑制片貼在干擾元件上,藉由傳導分散輻射干擾能有效地降低傳輸率降低、傳輸距離變短等問題。

應用/Application:

  • 手機設備SAR(生物體單位質量對電磁波能量比吸收率)
  • 數位相機
  • 各種設備如電視、電腦、DVD、筆記型電腦
  • 頻轉發器
  • 移動通訊設備如PDA, PDP

  • 產品規格

    MX-RN-2.4系列
    1 適用於2.4GHz之頻段,貼附於金屬框體中,可用於消除鬼影並且提升接收信號之S/N比
    專門解決WIFI 2.4GHz干擾問題 Single Layer 厚度:3 mm
    MX-RN-24G系列
    1 適用於24GHz之頻段,貼附於金屬框體中,可有效吸收雜訊,增加資料傳輸效能
    專門解決射頻天線干擾問題 Single Layer 厚度:0.9 mm
    MX-RN-30G系列
    1 適用於30GHz之頻段,貼附於金屬框體中,可用於消除鬼影並提升接收信號之S/N
    專門降低網路通道干擾 Single Layer 厚度:0.8 mm
    MX-RN-60G系列
    1 適用於60GHz之頻段,貼附於金屬框體中,可有效吸收雜訊,增加資料傳輸效能
    專門降低網路干擾 Single Layer 厚度:0.9 mm
    MX-RN-77G系列
    1 適用於77GHz之頻段,貼附於金屬框體中,可有效吸收雜訊,增加資料傳輸效能
    專門降低網路干擾 Single Layer 厚度:3.0 mm

    電磁波吸收圖

    MX-RN-24GHz 與 77GHz

    Technical Data Sheet

    0 -10 -30 -40 -50 -60 -70 -80 -20 0 10 20 30 40 50 60 70 80 90 100 110 Attenuation Frequency (GHz) Attenuation (dB/cm)


    0 10 20 30 40 50 60 70 80 90 100 110 0 -10 -30 -20 -5 -15 -25 Frequency (GHz) RL (dB) Reflection Loss 0.5mm 1.0mm

    Notes:
    *Reflection loss and insertion loss data were collected using a W-Band focused beam measurement system.
    **The information provided above is accurate at time of publication. It is the responsibility of the end-user to confirm compliance
    to their application. All test data is typical.


    MX-RN-18~40GHz

    Technical Data Sheet

    0 10 20 30 40 50 60 70 80 90 100 110 Frequency (GHz) 0 -40 -120 -80 -20 -65 -100 Attenuation Attenuation (dB/cm)


    0 10 20 30 40 50 60 70 80 90 100 110 Frequency (GHz) Reflection Loss 0.5mm 1.0mm 0 -10 -30 -20 -5 -15 -25 -35 RL (dB)

    Note:
    the information provided above is accurate at time of publication. It is the responsibility of the end-user to confirm compliance
    to their application.


    MX-RN-77GHz 與 110GHz

    Technical Data Sheet

    0 10 20 30 40 50 60 70 80 90 100 110 Frequency (GHz) 0 -10 -30 -20 -5 -15 -25 -35 -40 -45 Attenuation (dB/cm) Attenuation


    0 10 20 30 40 50 60 70 80 90 100 110 Frequency (GHz) 0 -10 -30 -20 -5 -15 -25 -40 RL (dB) -35 Reflection Loss 1.0mm 2.0mm

    Notes:
    *Reflection loss data was collected using a W-Band focused beam measurement system.
    **The information provided above is accurate at time of publication. It is the responsibility of the end-user to confirm compliance
    to their application. All test data is typical.
